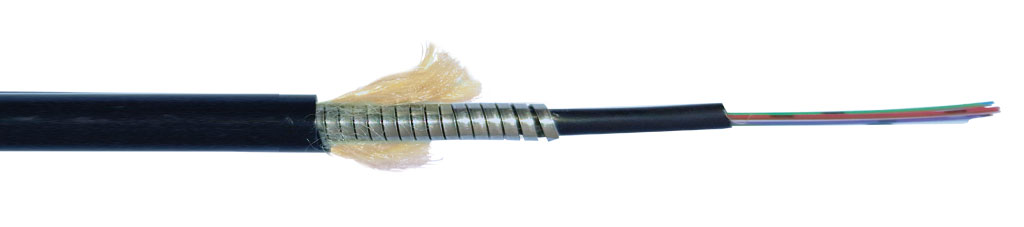

Cavo F.O. 9/125 OS2 S.M.Int./Est.LSZH Arm.spirale extra-flex
Cavi F.O.
| Parametri Fibra | |
| Tipo | G.657A1 |
| Mode field diameter | 1310nm: 9,0 ±0.4µm / 1550nm: 10,1 ±0.5µm |
| Cladding diameter | 124,8 ±0.7µm |
| Cladding non-circularity | ≤0,7% |
| Core-Cladding concentricity error | ≤ 0,5µm |
| Coating diameter | 245 ±5µm |
| Coating non-circularity | ≤6,0% |
| Cladding-Coating concentricity error | ≤ 12µm |
| Cable Cutoff Wavelenght | λcc≤ 1260nm |
| Attenuation coefficient (max.) | 1310nm ≤0,40 dB/km – 1550nm ≤0,30 dB/km |
| Macro-Bending Loss | 1 turn x 10mm radius @1550nm: ≤0,75dB
1 turn x 10mm radius @1625nm: ≤1,50dB |
| Caratteristiche costruttive | |
| Numero Tubi | 1 |
| Diametro Tubo | 2,50mm ±0.10mm |
| Loose tube material | LSZH |
| Loose tube color | Nero |
| Colored Coating Fiber | dimensione: 250µm±15µm
colore: blu, arancio, verde, marrone, grigio, bianco, rosso, nero, giallo, viola, rosa, verde acqua, blu, arancio, verde, marrone, grigio, bianco, rosso, nero, giallo, viola, rosa, verde acqua |
| Spiral shielded (Armatura in acciaio) | 3,80 ±0.1mm |
| Strength member | Aramid Yarn |
| Diametro cavo | 6,0mm ±0.2mm |
| Guaina | LSZH |
| Marcatura | ECS – Number FO OS2 9/125 G657 OUTDOOR Pe Fca ORDER NR. METER MARKING |
| Prestazioni meccaniche ed ambientali | |
| Long term tension | 150N |
| Short term tension | 300N |
| Long term crush | 2000N/10cm |
| Short term crush | 3000N/10cm |
| Raggio minimo di curvatura (posa statica) | 10 x Diam. ex. |
| Raggio minimo di curvatura (posa dinamica) | 20 x Diam. ex. |
| Temperatura esercizio/stoccaggio | -20°C ~ +70°C |
| Test | R.to Normativo | Valore numerico | Criterio di accettazione |
| Trazione | IEC 60794-1-21-E1 | 480N | Δα ≤0,25 dB/km – Fiber draw ratio ≤0,45% |
| Crush | IEC 60794-1-21-E3 | 1000N/100mm (maximum 15 minutes) | Δα ≤0,05 dB – No damage |
| Crash | IEC 60794-1-21-E4 | 4.5 Nm, 3 impacts, R= 300mm | Δα ≤0,05 dB |
| Torque | IEC 60794-1-21-E7 | 100N, ±180° 10 cycles | Δα ≤0,05 dB – No damage |
| Repeated bending | IEC 60794-1-21-E11 | 20xD., 1Kg, 3 cycles | Δα ≤0,05 dB – No damage |
| Bending radius | IEC 60794-1-21-E6 | R=20xD., 4 turns, 3 cycles | Δα ≤0,05 dB – No damage |
| Temperature cycling | IEC 60794-1-22-F1 | -20°C ~ +70°C | Maximum value 0,05 dB/km |
| Codice smart | Codice interno | Numero Fibre | Colore Guaina | Confezione | Diametro mm. | Peso Kg/Km | Raggio min. curvatura |
| FOS2-24-SP/B1000 | FOHFFW24EIS2NEB10 | 24 | Nera | bobina 1000m | 6,0mm | 74,00 | 10xExt.Diam. |
| FOS2-24-SP/M100 | FOHFFW24EIS2NEM01 | 24 | Nera | matassa 100m | 6,0mm | 74,00 | 10xExt.Diam. |
I Dati riportati sono da considerarsi indicativi e non strettamente vincolanti.
