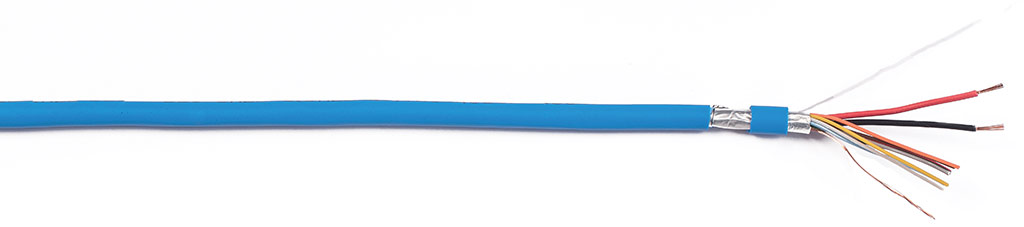

Alarm Cables Blue (ex:Degree 4)
Alarm
| Construction |
|
| Conductor |
Flexible bare Cu classe 5, CEI EN 60228 |
| Insulation |
PVC TI2 quality , CEI EN 50363 |
| Tape |
PET |
| Shield |
Al/PET + drain wire |
| Sheath |
PVC TM2 quality Blue RAL5015, CEI EN 50363 |
| Printing |
ECS – ALARM CABLE GR4 CEI 20-22 II CEI UNEL 36762 C-4 (Uo=400V) WW/YY [ORDER NR] 001M – Eca |
| Elecrtical properties |
|
| Nominal voltage |
Uo/U=300/500V |
| Test voltage |
2000V |
| Operating temperature |
-10°C +70°C |
| Rules |
| CEI 20-22 II / CEI EN 60332-1-2,CEI UNEL 36762 C-4 (Uo=400V) – CE / EN 50575:2014/A1:16 |
| Notes |
| Cable can be installed together with power cables with nominal voltage 220/380V |
| Smart code |
Item Number |
Section mm² |
Diameter mm. |
Weight Kg/Km |
| A4-004 |
ALPVRS0422G4BLM02 |
4X0,22 |
4.00 |
19.00 |
| A4-006 |
ALPVRS0622G4BLM02 |
6X0,22 |
4.70 |
29.00 |
| A4-502 |
ALPVRS5002G4BLM01 |
2X0,50+2X0,22 |
5.10 |
34.00 |
| A4-504 |
ALPVRS5004G4BLM02 |
2X0,50+4X0,22 |
5.40 |
44.00 |
| A4-506 |
ALPVRS5006G4BLM02 |
2X0,50+6X0,22 |
5.70 |
51.00 |
| A4-508 |
ALPVRS5008G4BLM02 |
2X0,50+8X0,22 |
6.10 |
59.00 |
| A4-702 |
ALPVRS7502G4BLM02 |
2X0,75+2X0,22 |
6.30 |
48.00 |
| A4-704 |
ALPVRS7504G4BLM02 |
2X0,75+4X0,22 |
6.60 |
52.00 |
| A4-706 |
ALPVRS7506G4BLM02 |
2X0,75+6X0,22 |
6.40 |
59.00 |
| A4-708 |
ALPVRS7508G4BLM02 |
2X0,75+8X0,22 |
7.00 |
71.00 |
| A4-710 |
ALPVRS7510G4BLM02 |
2X0,75+10X0,22 |
7.70 |
78.00 |
}
The details expressed above have to be considered as an indication.
