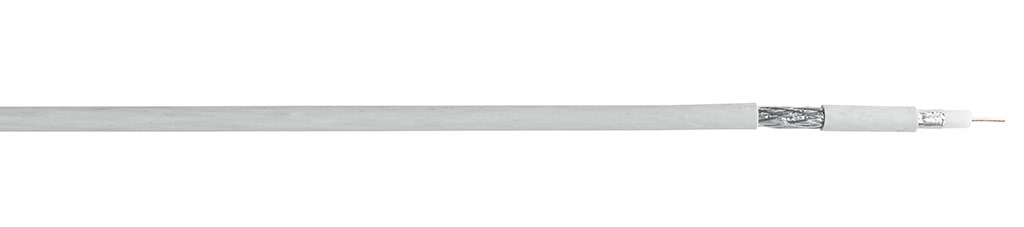

Cable SD-680I – DIGISAT 75Ω d. 6,80mm
Coaxial Cables
| Construction | |
| Conductor | Solid BC 1.13 +/- 0.02mm |
| Dielectric | PEE 4.8 +/- 0.1mm |
| Shield | Al/PET/Al |
| Second shield | Aluminum Braid+PET >43% |
| Outer sheath | PVC white 6.8 +/- 0.2mm |
| Printing | ECS – SD 680I – DIGISAT 75 Ω – Ø 6,80 CLASS A+ EN50117-9-2 CEI UNEL 36762 C-4 (Uo=400V) CE – metrica – WW/YY – N. ORD – Eca |
| Electrical properties | |
| Impedence | 75.0 +/-3.0 Ω |
| Mutual Capacitance | 52.0 +/-2.0pF/m |
| Return Loss | 5-470 MHz >30
1000-2000 MHz ≥20 |
| VPP | 85% |
| Note |
| CLASS A+ |
| Frequency (MHz) | Attenuation @20°C (dB/100m) |
| 5 | 1.5 |
| 50 | 4.30 |
| 200 | 8.10 |
| 470 | 12.60 |
| 862 | 16.90 |
| 1000 | 18.90 |
| 1750 | 25.40 |
| 2150 | 28.50 |
| 2400 | 30.20 |
| 3000 | 34.00 |
| Smart | Item Number | Diameter mm. | Weight Kg/Km |
| SD-680I | SDPV75D68ITABIM01 | 6.8 +/- 0.2 | 40.00 |
}
The details expressed above have to be considered as an indication.
